Vertical Gearbox

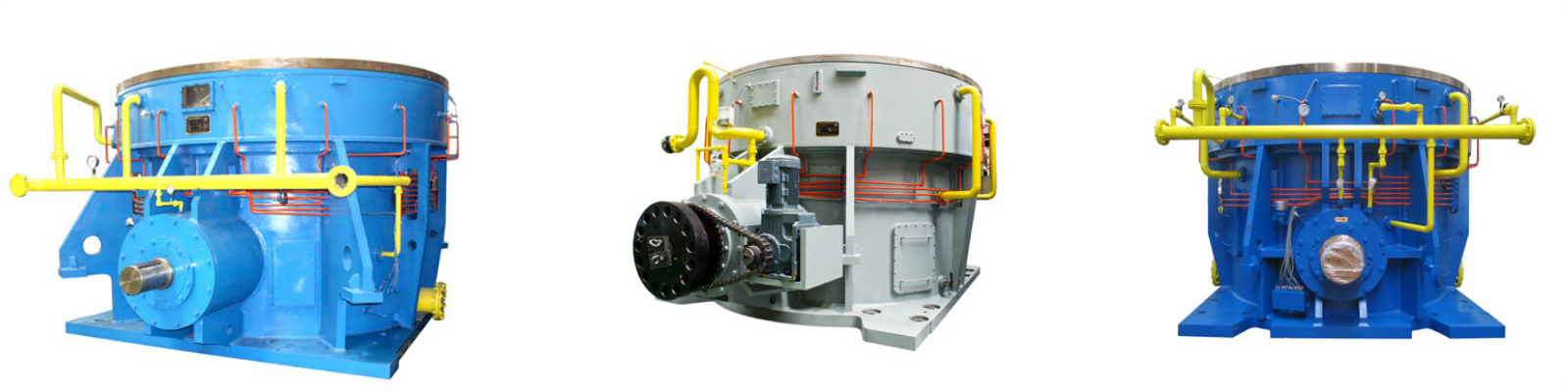

vertical mill gearbox

Zonpoo Vertical mills require extremely high rated power and extremely high usability.

The gearboxes as the key component of vertical mills are used for transmitting power, reducing the rotating speed of the motor to the rotating speed required by the mill during grinding, and supporting the mill’s millstone.

High axial force and partial radial force geuerated during the grinding process are transmitted to the mill foundation through thrust bearing and the housing.

Technical Data

  • Size: up to 36
  • Stage: 2 and 3 stage
  • Driving speed ratio: maximum i=60
  • Rated power: P=50~8,000 kW

 Applicable Fields

Grinders for raw material; crushing coal sheets in the coal industry and crushing limestone, cement clinker, slag, lime, gypsum, coal ash, and ore in the building industry.

Application Examples

Main reducer for MLX280 cement vertical mill used for 4,000T/d cement production lines of Lafarge Cement Plant, supporting FL Smith OK33-4 vertical mill.

Main reducer for MLX200 cement pre-grinding vertical mill used for Qingfeng Cement Co., Ltd.,

Why Zonpoo MLX vertical mill Gearbox

  • Optimized gear meshing accuracy, lower noise, and high efficiency;
  • Gearbox and planetary frame are analyzed by FEM and optimally designed, ensuring deformation during operational processes is under control for operation smoothness;
  • The complete thrust bearing device is patented nationally;
  • Secured manufacturing quality and higher reliability.
