Bucket Elevator Gearbox

bucket elevator gearbox

Bucket elevators serve to vertically transport large masses of bulk material to different heights without creating dust, then dump it. The height to be overcome is frequently more than 200 meters. The weights to be moved are enormous.

The carrying elements in bucket elevators are central or double chain strands, link chains, or belts to which the buckets are attached. The drive is located at the upper station.

The features specified for the drives destined for these applications are similar to those for steeply ascending belt conveyors. Bucket elevators require a comparatively high input power.

The drive must be soft-starting because of the high starting power, and this is achieved by means of fluid couplings in the drive train.

Bevel helical gear units are normally used for this purpose as single or twin drives on a base frame or swing base.

Technical Data

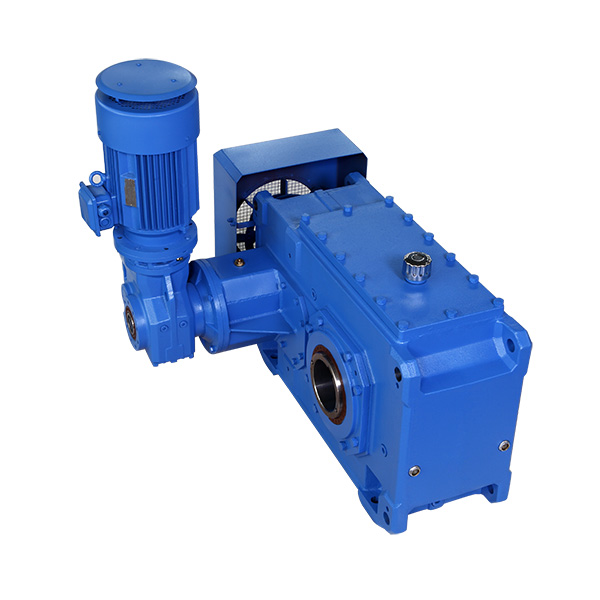

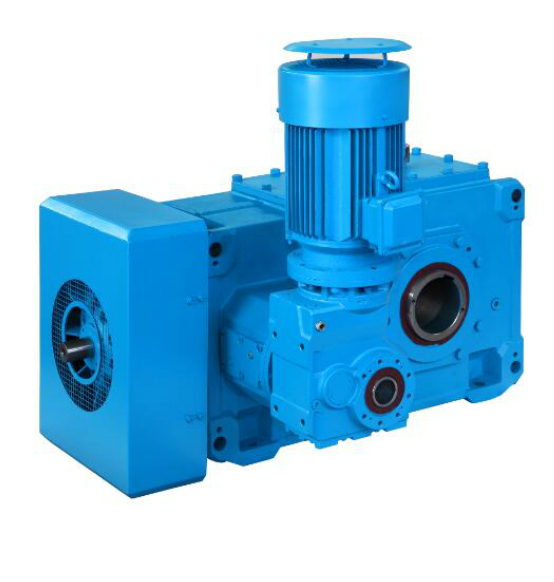

  • Types: Bevel helical gear unit spiral bevel gear motor.
  • Sizes: 15 sizes from 04 to 18
  • Gear stages: 3
  • Power ratings: 10 to 1,850 kW (auxiliary drive power from 0.75 to 37 kW)
  • Transmission ratios: 25 – 71
  • Nominal torques: 6.7 to 240 kNm
  • Mounting positions: Horizontal

Applications

bucket elevator gearbox

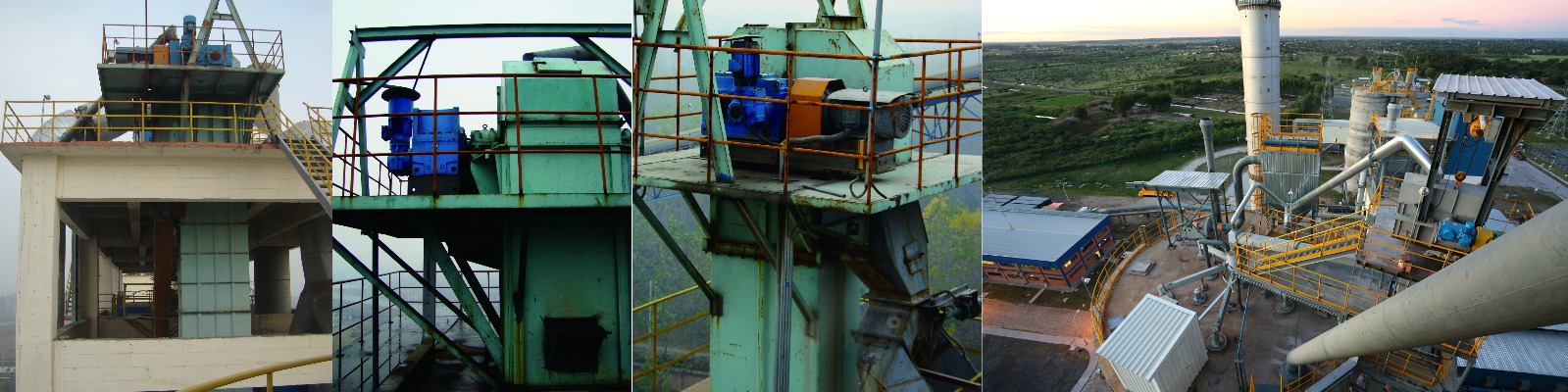

Cement, mining, fodder, agriculture…

 Why Zonpoo Bucket Elevator Gearbox

  • Maximum power capacity
  • Maximum operational reliability
  • Fast availability
  • Modular design principle
